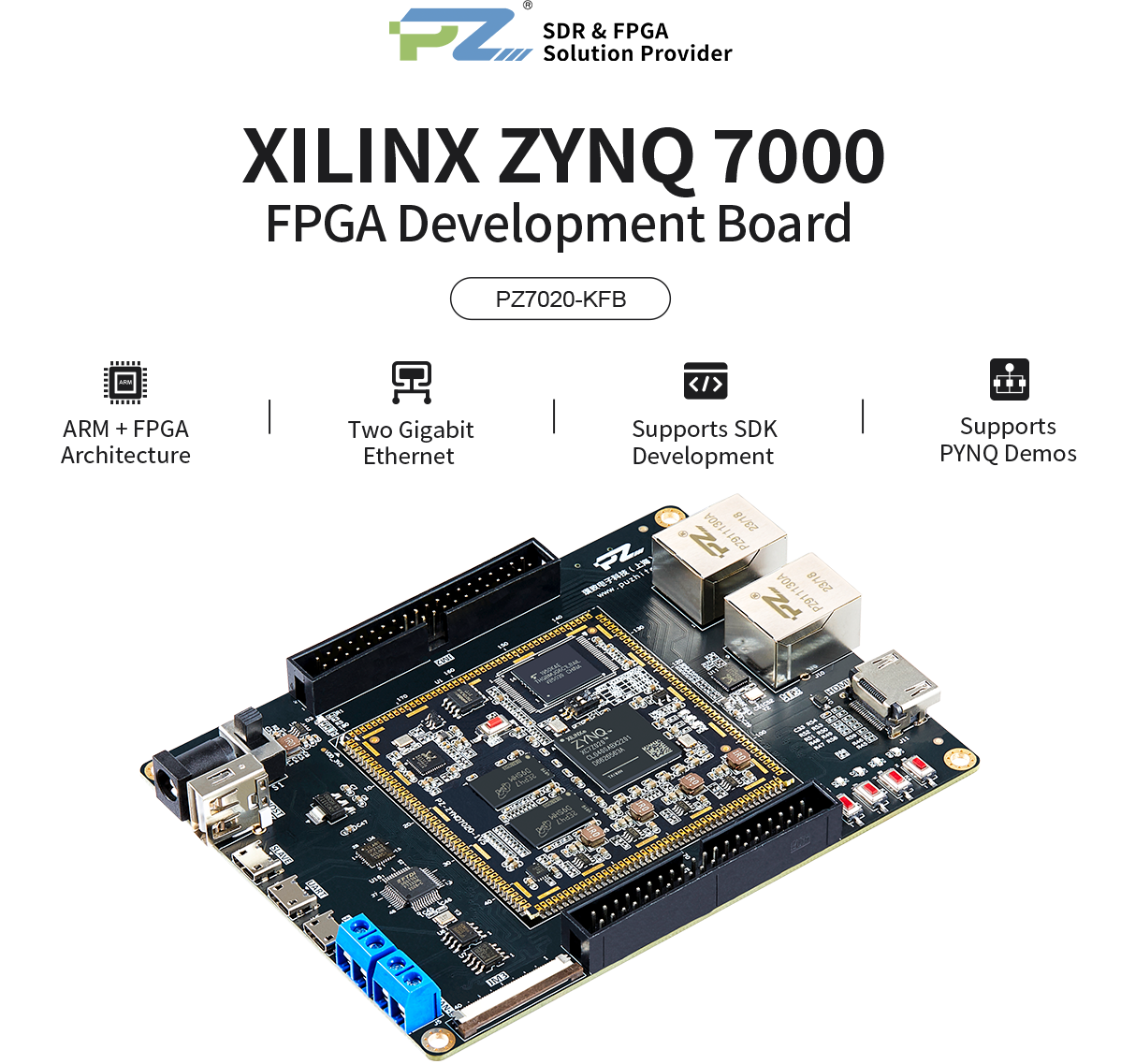

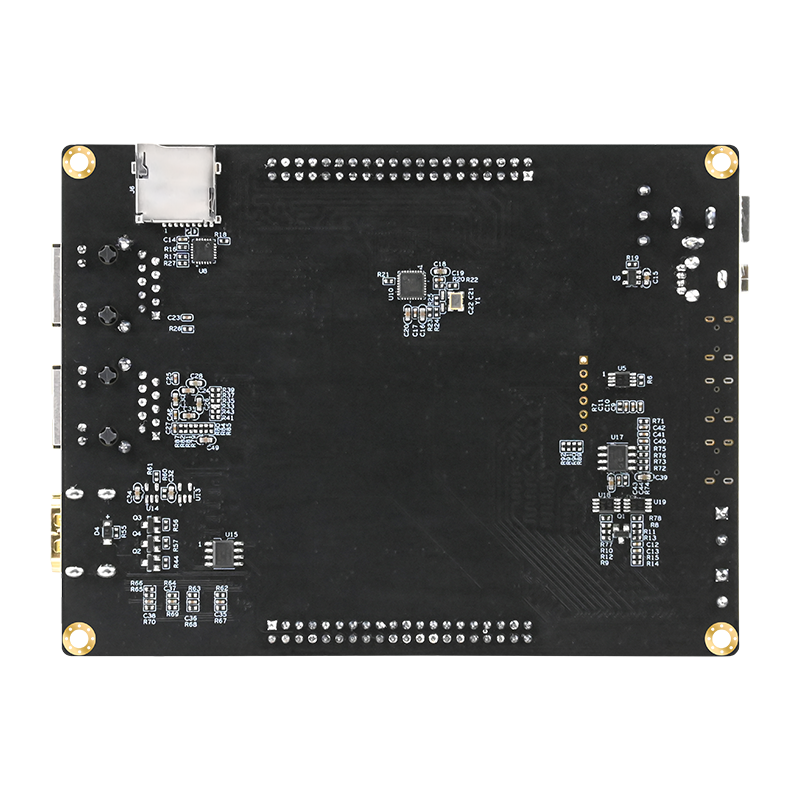

Puzhi FPGA ZYNQ7000 ZYNQ7020 Development Board
PZ7020-KFB
- ARM+FPGA architecture，dual-core ARM Cortex-A9，main frequency 766Mhz
- Core parameters 1GB DDR3，8GB EMMC，128Mb QSPIFLASH
- Stamp HoleSmall Core Board，Size 61mm*61mm
- Reserved ports UART、RS485、CAN、Dual Gigabit Ethernet、HDMI，etc
- Support SDK development，support PYNQ，rich routines，help product development

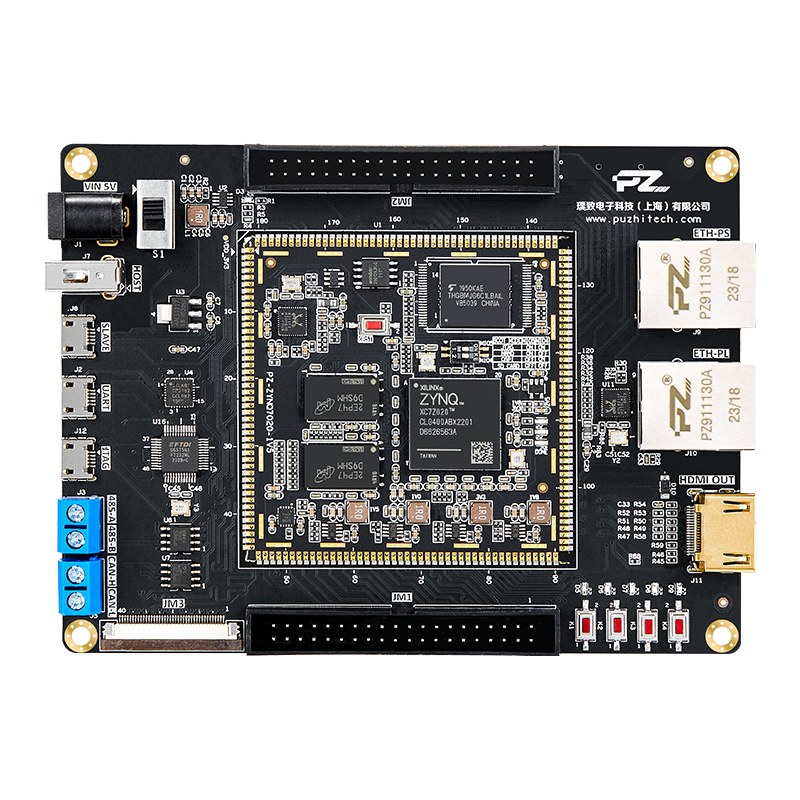

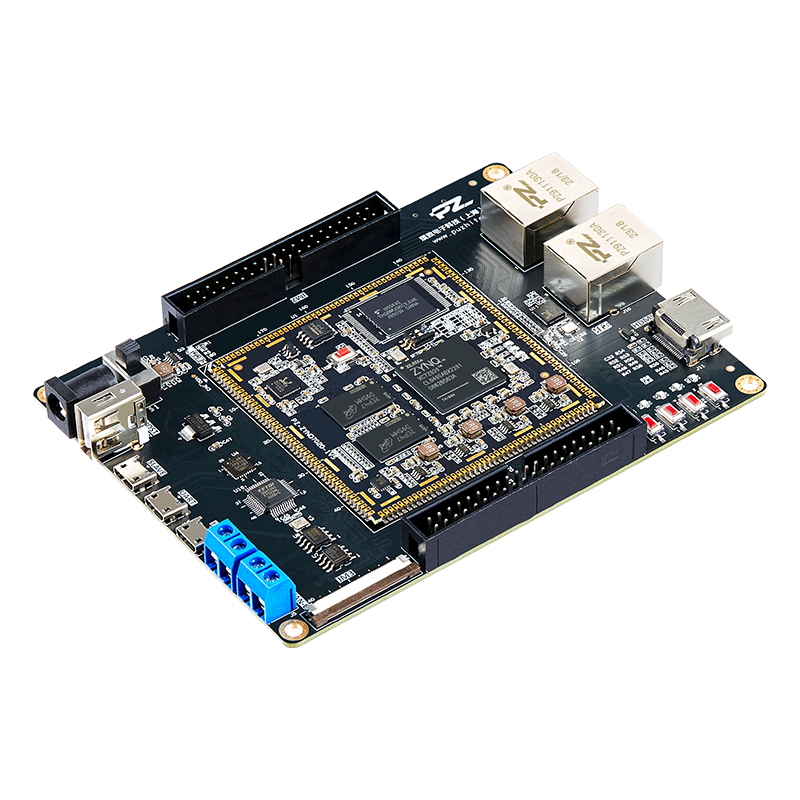

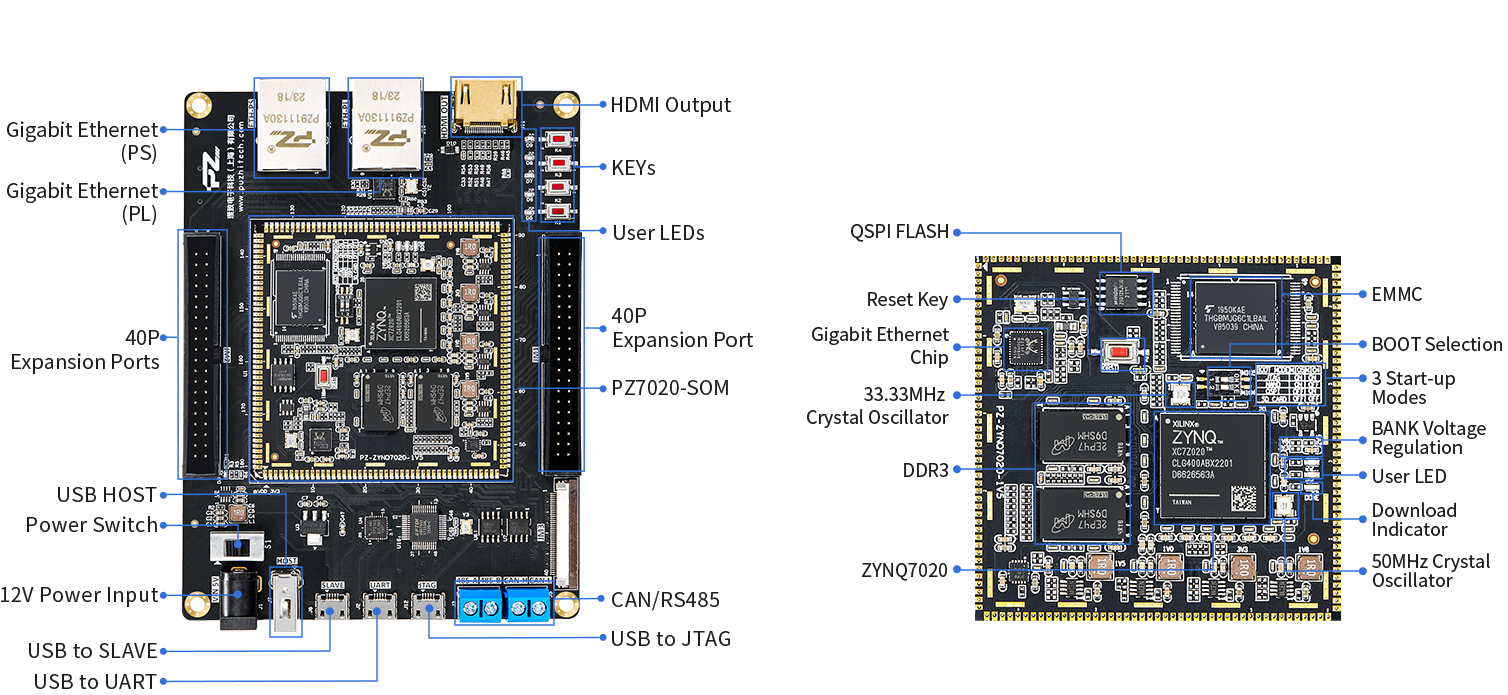

Interface Function Display
Product Parameters
Core Board Main Parameters
FPGA Dev. Board | PZ7020-KFB |
FPGA Chip | XC7Z020-2CLG400I |
Processor Core | Dual Core ARM Cortex-A9 |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 85K |
Lookup Tables | 53200 |
Flip-Flops | 106400 |
DSP Slices | 220 |
BLOCK RAM | 4.9Mb |
DDR3/DD3L | 1GB |
QSPI FLASH | 128Mb |
EMMC | 8GB |
User LED | 2 |
Start-up Mode | JTAG/QSPI/SD, On-board DIP Switch Selection |
PS Side MIO | 24 |
PL Side IO | Total 118 Single-ended IOs of which, 70 IOs Levels fixed at 3.3V 48 IOs Levels 1.8V/2.5V/3.3V adjustable, default 3.3V |
Crystal Oscillator | Single-ended Crystal 33.3333MHz for PS Single-ended Crystal 50MHz for PL |
Core Board Form Factors | 2.40 inch x 2.40 inch (61mm x 61mm) |
Interfaces and Function
JTAG Interface | 1 |
UART/RS485/CAN | 1/1/1 |
SD Card Slot Interface | 1 |
USB2.0 Host/ Slave | 1/1 |
Gigabit Ethernet | 1 on PS Side, 1 on PL Side |
HDMI | 1 HDMI Output |
LED | 5 LEDs |
按键 | 4 KEYs |
40Pin FPC Expansion Port | 24 Single-ended / 12 Differential pairs |
Voltage / Current | 5V/2A |
Board Form Factors | 5.04 inch x 3.78 inch (128 mm x 96mm) |
Technology | Black Matte, lmmersion Gold Process |
40Pin Expansion Port | Total 56 Single-ended Reserve Two 40-pin 0.1 inch Expansion Port,to Connect Puzhi Modules (AD/DA, Camera, LCD) Expansion Port including 5V power supply 3.3V power supply, 6 Ground, 32 IOs |

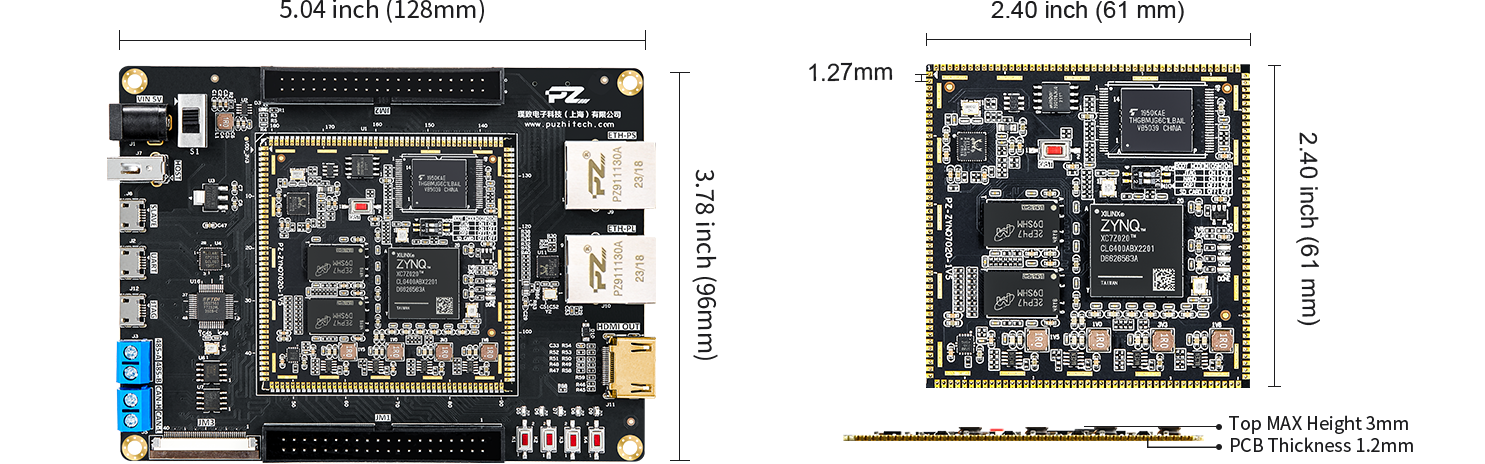

Product Dimensions
Product Packages

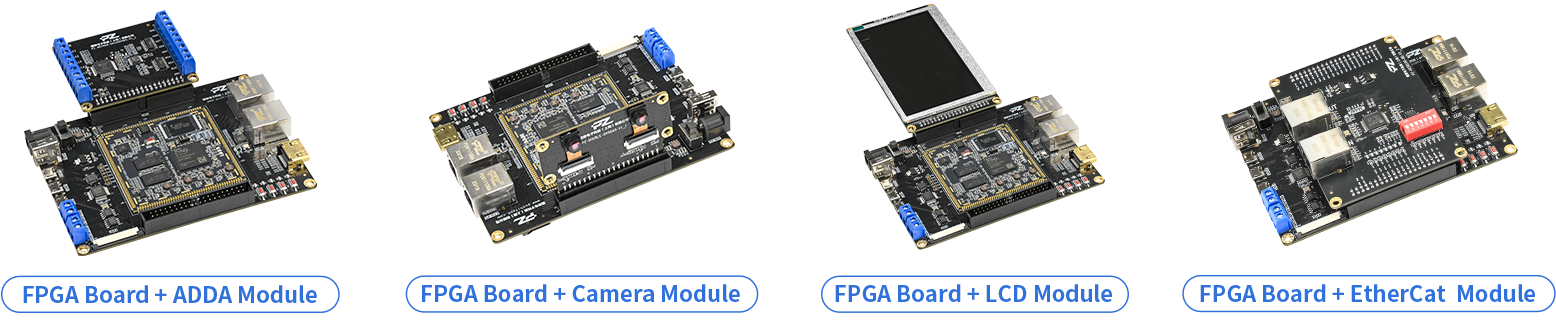

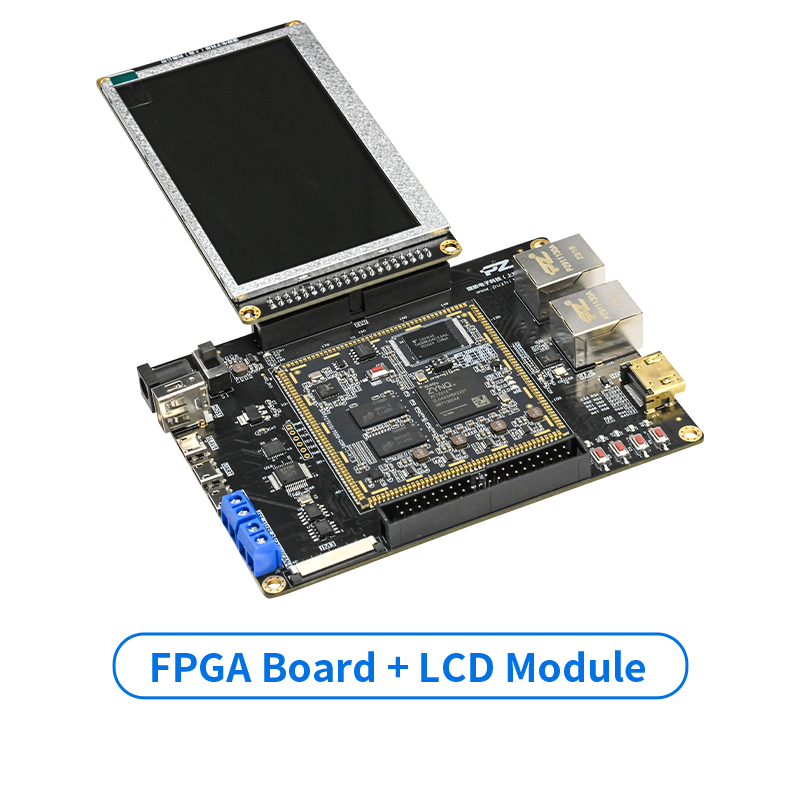

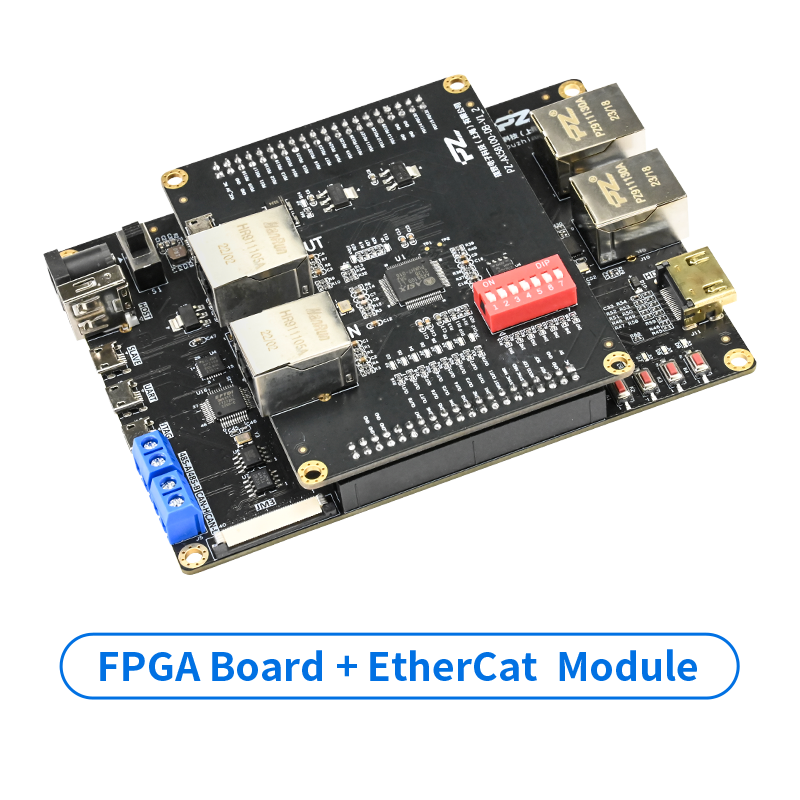

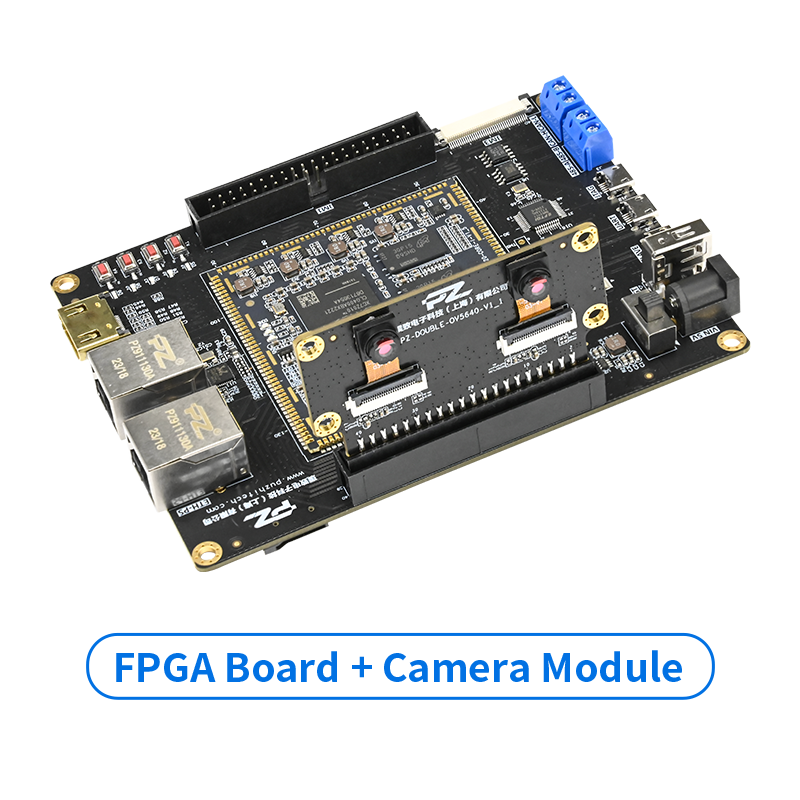

Other Subcard Display
Supporting Display
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
- 01.
Vivado Environment Introduction and Installation
- 02.
FLASH Curing and Engineering Chip Model Change
- 03.
LED Flashing
- 04.
PWM Control of LED
- 05.
Key Debounce and LED Control
- 06.
FPGA on-chip RAM Read and Write
- 07.
FPGA on-chip ROM Read and Write
- 08.
FPGA on-chip PLL Configuration
- 09.
FPGA on-chip FIFO Usage
- 10.
I2C Read and Write E2PROM
- 11.
HDMI Output Image
- 12.
LCD Picture Display
- 13.
Binocular Camera Output and HDMI Display Image
- 14.
AD-AD7606/7608 8-channel Acquisition Voltage
- 15.
DA 8-channel Output Sine Wave, Triangle Wave Square Wave
- 16.
PL Side Gigabit Ethernet Communication
- 17.
USB3.0 Software and Driver Installation
- 18.
USB3.0 DATA LOOP Testing Demos
- 01.
- 2
ARM Demos
- 01.
Uart
- 02.
PS Timer Interrupt Experiment
- 03.
PS Side EMIO Control LED Flashing
- 04.
EMIO Key Control LED
- 05.
Dual-core AMP
- 06.
Custom IP
- 07.
RS485 Communication
- 08.
CAN Bus Communication
- 09.
I2C Communication
- 10.
Gigabit Ethernet L(NET0 MIO) Demo
- 11.
Gigabit Ethernet Remote Upgrade
- 12.
PS Side DDR3 Read and Write
- 13.
PS Side EMMC Read and Write
- 14.
AXI-DMA Read and Write
- 15.
SD Card Read and Write
- 16.
ADC Acquisition Gigabit Ethernet Transmission
- 17.
LCD Image Display
- 18.
HDMI Image Display
- 19.
Binocular Camera HDMI Output Display
- 20.
SD Card Picture HDMI Output Display
- 01.
- 3
PetaLinux Demos
- 01.
Introduction to Virtual Machine and Ubuntu System
- 02.
Petalinux Tool Installation
- 03.
SD Card to Start the Linux System
- 04.
QSPI+EMMC Start Linux
- 05.
PetaLinux LED
- 06.
HDMI Display under Linux
- 07.
Drive USB Mouse and Keyboard under Linux
- 08.
Application of QT on ZYNQ
- 09.
Linux Common Commands
- 01.
- 4
Supports PYNQ

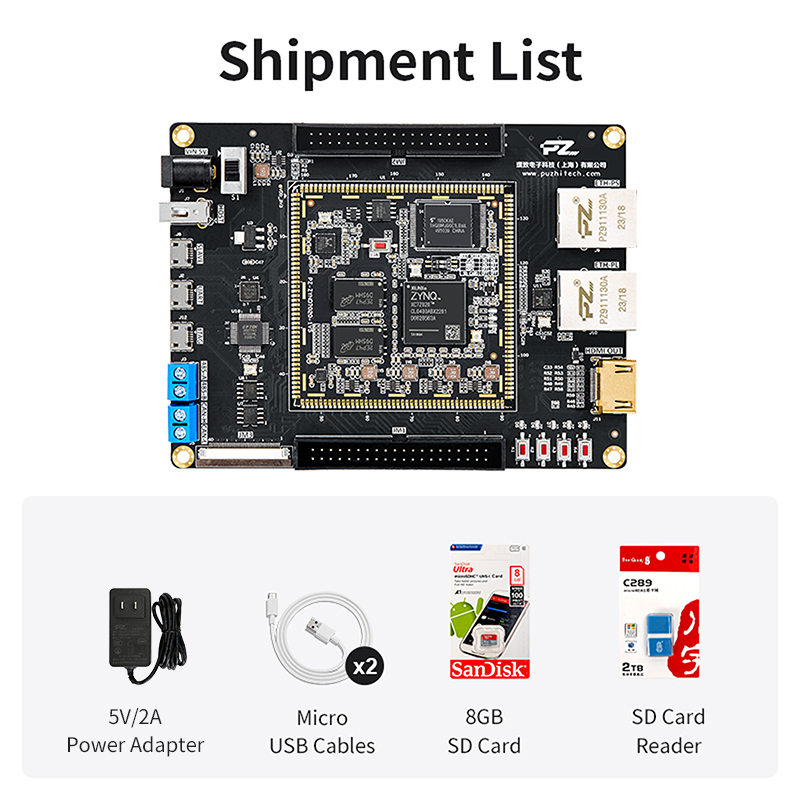

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
