Puzhi FPGA ZYNQ UltraScale+ ZU2CG Core Board
- ZYNQ UltraScale+ core board，2 x Cortex-A53，main frequency 1.2Ghz
- PS Side 4GB、PL Side 1GB DDR4，8GB EMMC，256Mb QSPIFLASH
- Size 83.8*64.8mm，up to 230 IO available
- Extreme material selection and process standards，industrial grade -40℃~+85℃
- Support PYNQ，provide hardware reference & rich routines，help product development

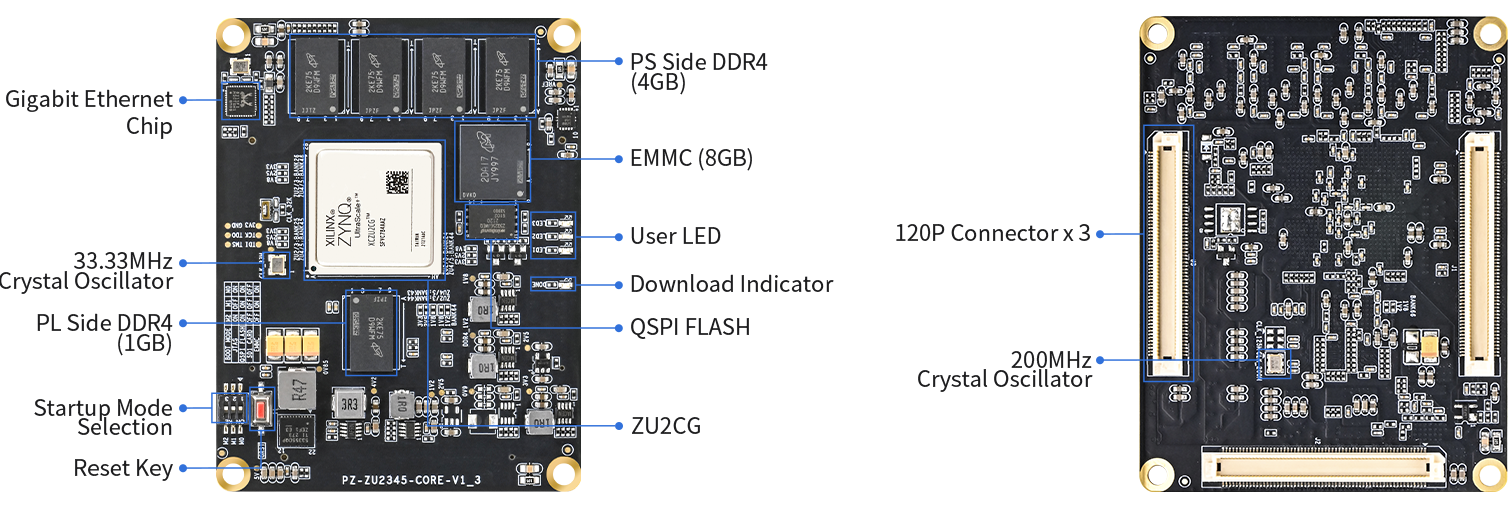

Interface Function Display
Product Parameters
Specification
FPGA Core Board | PZ-ZU2CG-SOM |
FPGA Chip | XCZU2CG-2SFVC784I |
Processor Core | 2 x Cortex-A53-1.2Ghz 2 x Cortex-R5-500Mhz |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 103K |
Flip-Flops | 94000 |
Lookup Tables (LUTs） | 47000 |
DSP Slices | 240 |
BLOCK RAM | 5.3Mb |
DDR4 | PS Side 4GB, PL Side 1GB |
QSPI FLASH | 256Mb, to Store Startup Files and User Files |
EMMC | 8GB |
Start-up Mode | JTAG/QSPI/SD/EMMC, Default SD startup |
Reset Key | 1 |
PS Side GTR | 4 Pairs of TX/RX |
PS Side MIO | 38 |
PL Side IO | Total 192 single-ended of which, 96 IOs Levels 1.2V/1.8V Adjustable, Default 1.8V |
Gigabit Ethernet Chip | 1 |
User LED | 3 |
Voltage / Current | 5V/3A |
Crystal Oscillator | 33.3333MHz Single-ended Crystal For the PS 200MHz Differential Crystal for the PL |
Technology | Black Matte. Immersion Gold Process |
Core Board Form Factors | 3.30 inch x 2.55 inch (83.8mm x 64.8mm ) |

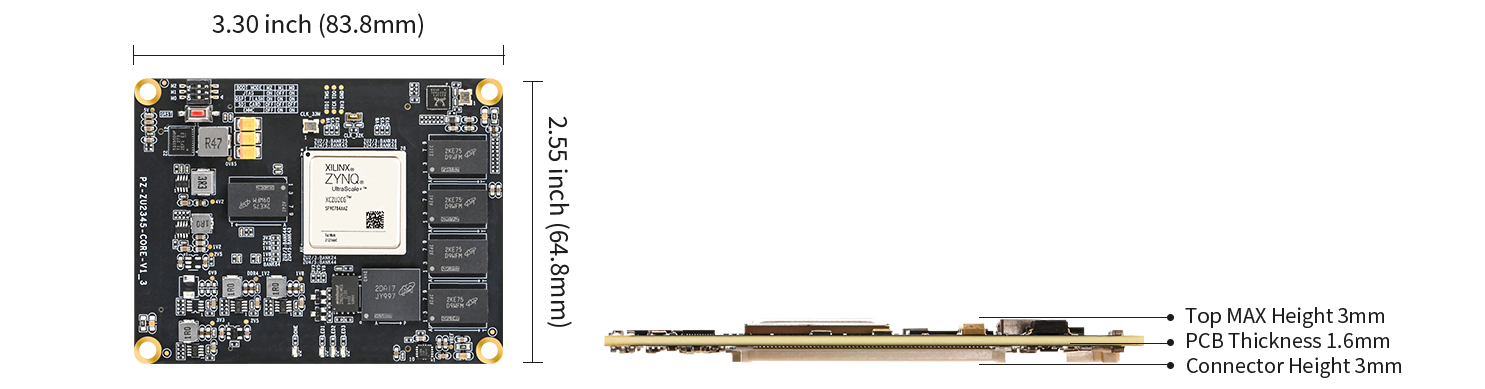

Product Dimensions
Technical Support
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox

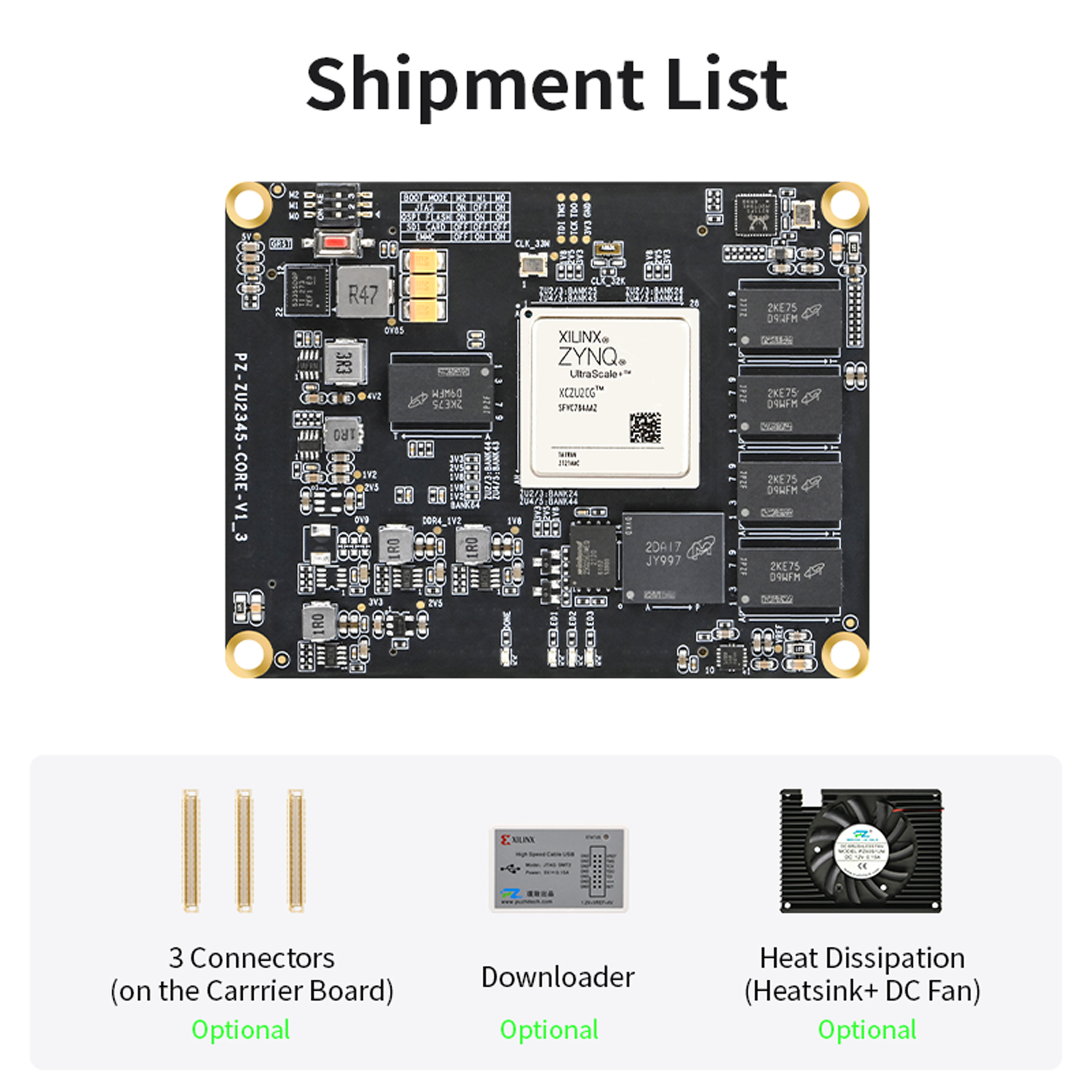

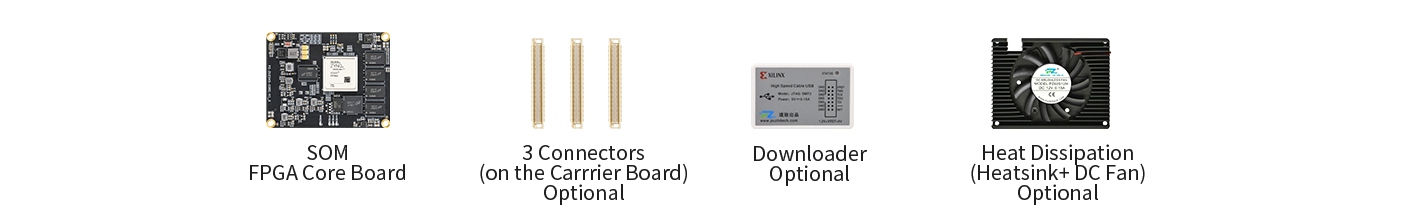

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
