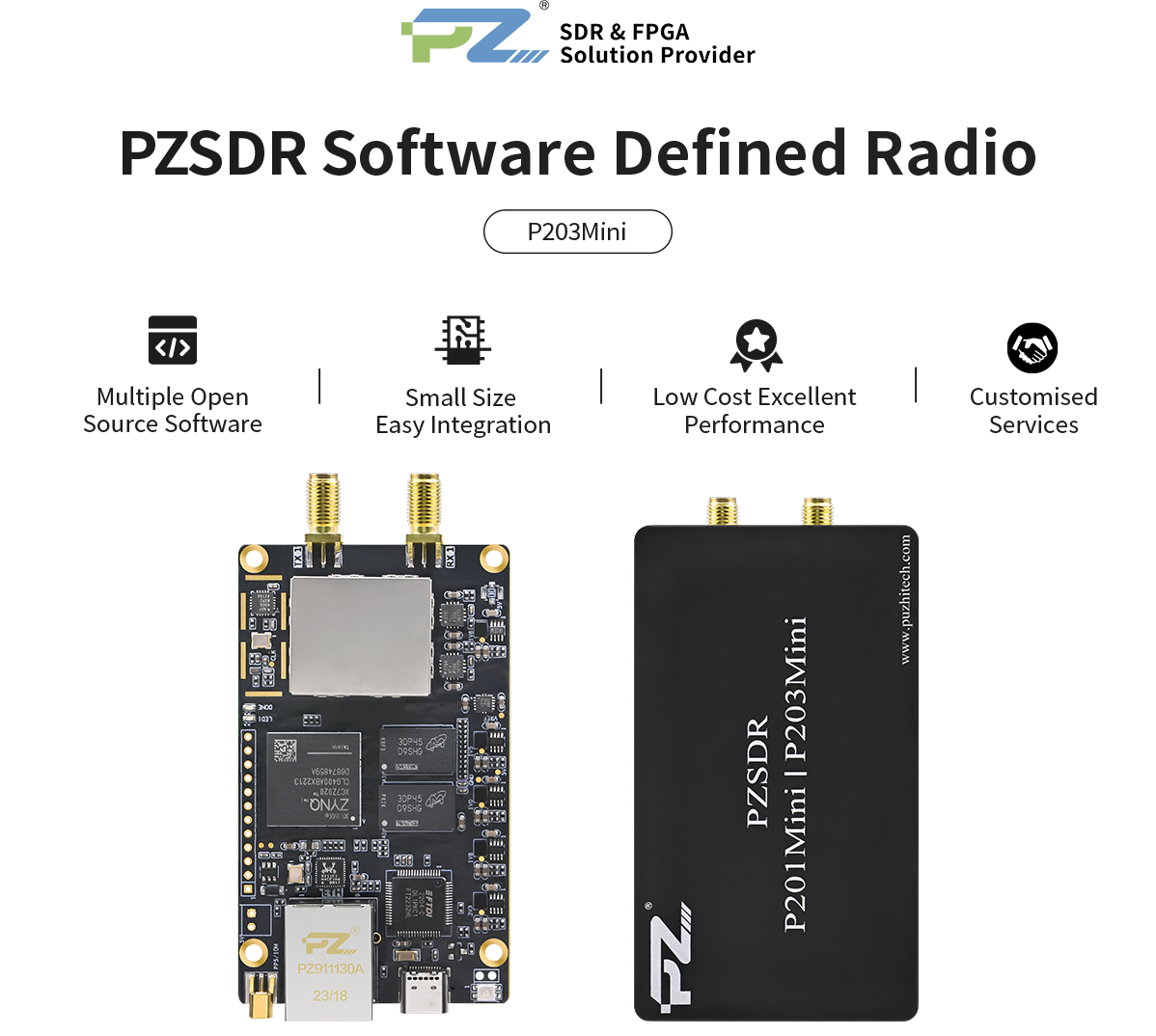

Puzhi PZSDR Software Defined Radio ZYNQ7020+AD9363

Home- Product Center

P203Mini

RF chip AD9363，Frequency range 325M-3.8Ghz，Signal bandwidth 200K-20Mhz
1GB DDR3，256Mb QSPI FLASH，256Kb E2PROM

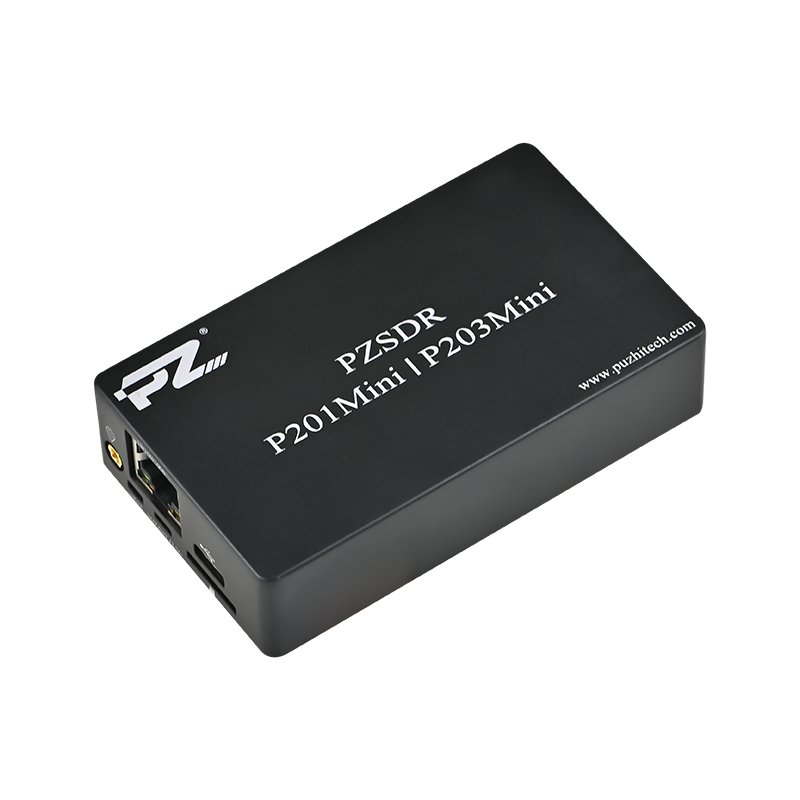

Dimensions：Board 85x50x2.2mm、shell 95x55x23mm
Small size，easy integration，excellent performance and low cost
Support open source software，Provide hardware reference & software rich routines，Customised Services

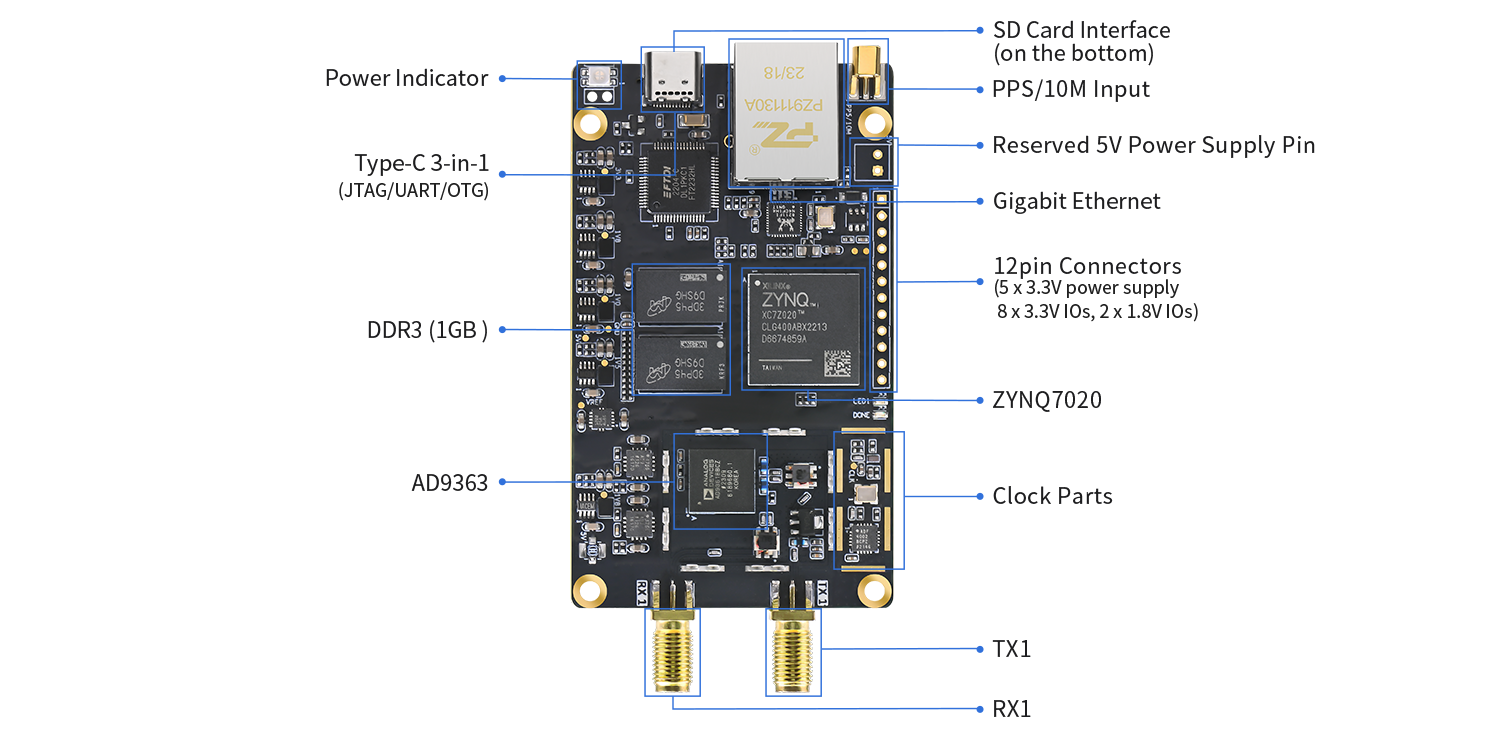

SDR Module	P203Mini
RF Chip	AD9363
Frequency range	325M-3.8Ghz
Signal Bandwidths	200K-20Mhz
Power Amplifier	10-15dbm
FPGA Chip	XC7Z020-2CLG400I
Processor Core	Dual Cortex-A9, 766Mhz
Ｌogic Cells	85K
DDR3	1GB
QSPI FLASH	256Mb
E2PROM	256Kb

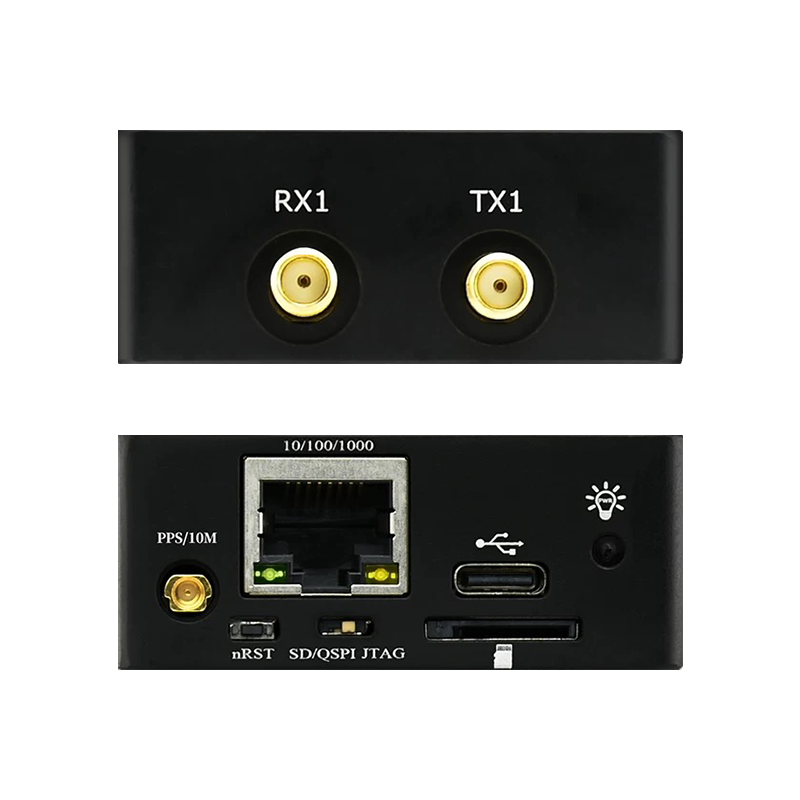

Gigabit Ethernet	1
UART	1
JTAG	1
SD Card	1
PPS/ 10M Input	1
Expansion Port IOs	8 x 3.3V IOs, 2 x 1.8V IOs

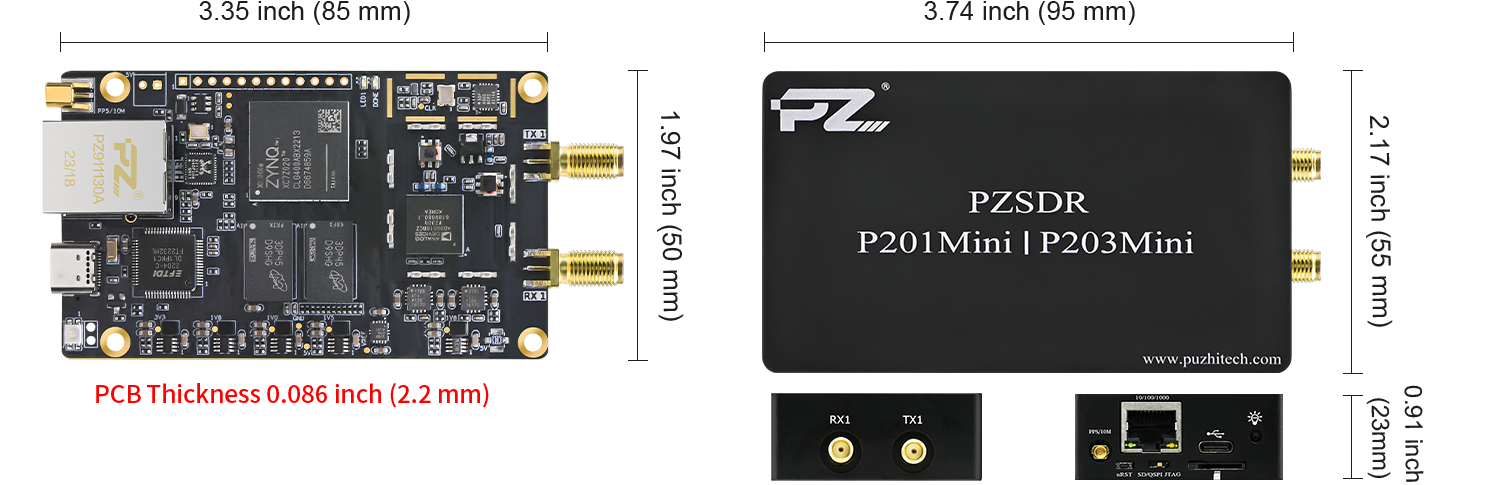

Form Factors	Board: 3.35 inch x 1.97 inch x 0.09 inch；with Shell: 3.74 inch x 2.17 inch x 0.91 inch
Power Supply	TypeC/XH2.54 Power Supply Options
Working Temperature	-40°C~+85°C

Porting & Open Source Support

1. PlutoSDR 2. UHD 3. AD9361 Non-Operating System Engineering

Open Source Software Packages

1. vivado2019.1 2. ubuntu-18.04.4D 3. GNU Radio 4. SDRangel

5. SDR# 6. Matlab Simulink 7. Gqrx SDR 8. PYNQ

Customisation & Support

Provide Customised Services, Professional Technical Support, Constantly Updated Demos

Commerical Invoice
- 1.
  Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
- 2.
  Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
- 1.
  The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
- 2.
  Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
- 3.
  Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
- 4.
  The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
- 1.
  DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
- 2.
  Working Time: Monday to Friday, 9am to 6pm CsT.
