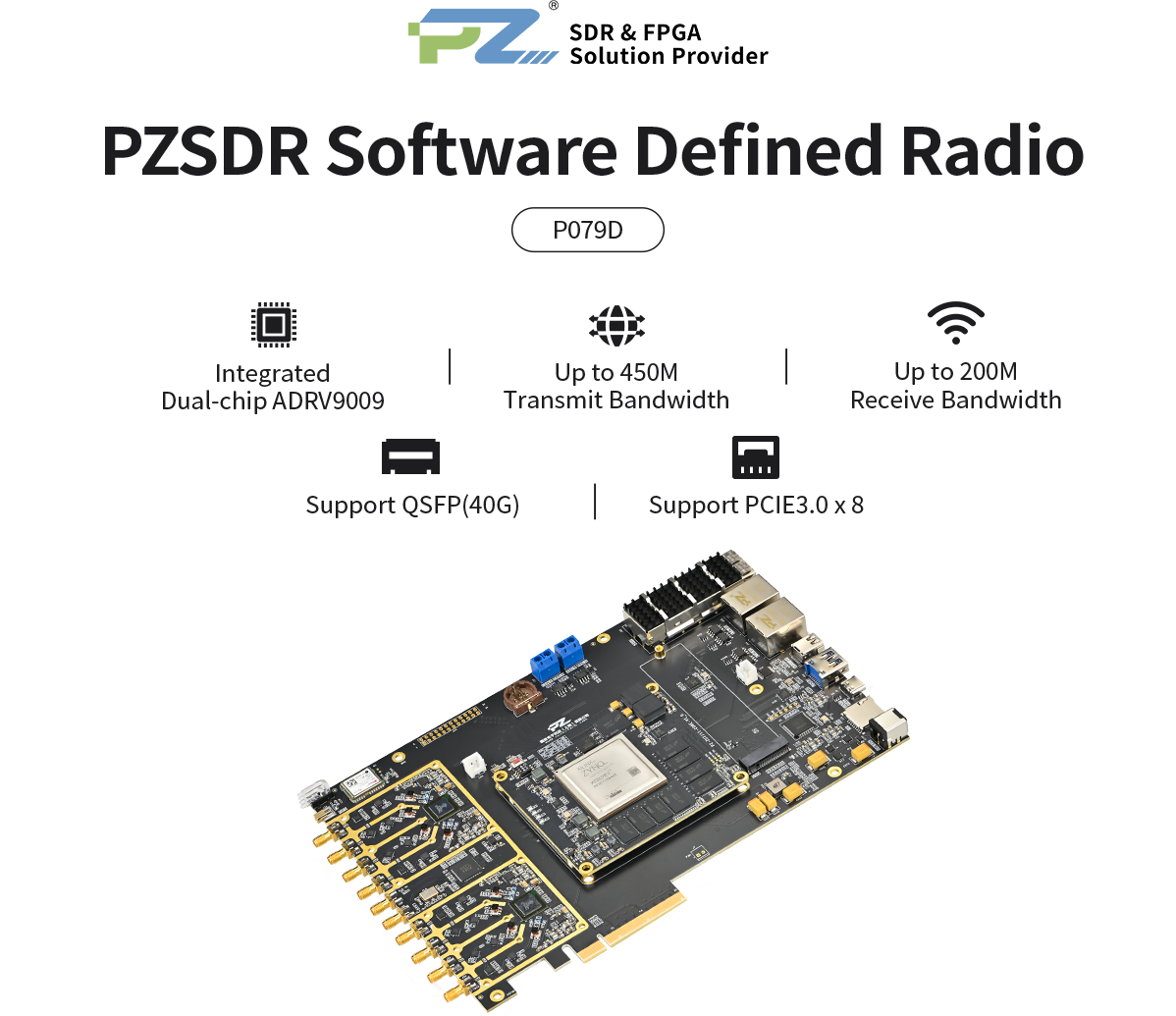

Puzhi PZSDR Software Defined Radio ZU7EV+ADRV9009*2
- RF chip ADRV9009BBCZ，Coverage Frequency 75MHz-6Ghz
- High bandwidth and high power，both TX and RX support full bandwidth high linearity of 22dbm
- Bits 16bit ADC & 14bit DAC，integrated with dual-chip ADRV9009
- Supports 40G QSFP interface and PCIE3.0x8
- Supports multiple open-source software，Customised Services
Interface Function Display
Product Parameters
PZSDR Main Parameters
SDR Module | P079D |
RF Chip | ADRV9009BBCZ |
Frequency Range | 75MHz-6Ghz |
Bit Width | ADC 16bit，DAC 14bit |
Signal Bandwidths | TX 450Mhz，RX 200Mhz |
Power Amplifier | TX and RX Support Full Bandwidth High Linearity 22dbm(Maximum Transmit Success Rate 25dbm) |
FPGA Chip | XCZU7EV-2FFVC1156I |
Processor Core | ARM: 4 x Cortex-A53 (1.3Ghz) RPU: 2 x Cortex-R5 (533Mhz) CPU: Mali-400MP2 (667Mhz) |
DDR4/DDR4L | PS Side 4GB, PL Side4GB |
QSPI FLASH | 256Mb+256Mb |
EMMC | 8GB |
RF Clock | 1 Output, 1 Input |
Clock Input | 1 |
Gigabit Ethernet | 1 on PS Side, 1 on PL Side |
USB3.0/USB2.0 OTG | 1 |
UART | 1 |
JTAG | 1 |
SD Card Slot | 1 |
GPS | 1 |
Power Supply | 12V/3A |
Working Temperature | Industrial Grade (-40°C~+85°C) |
Form Factors | 8.66 inch x5.63 inch (220 mm x 143mm) |
Product Dimensions

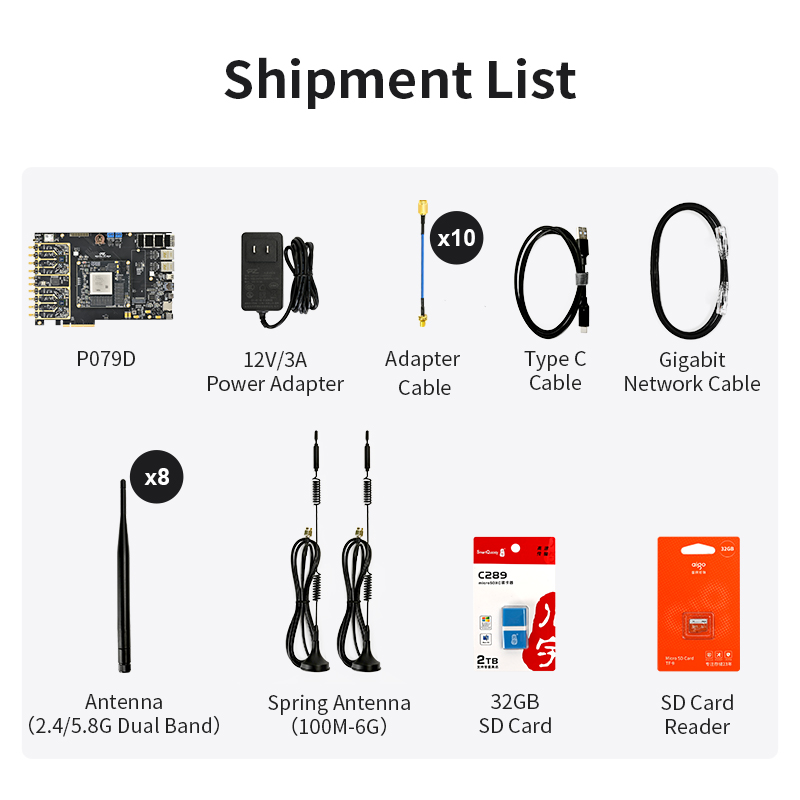

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
