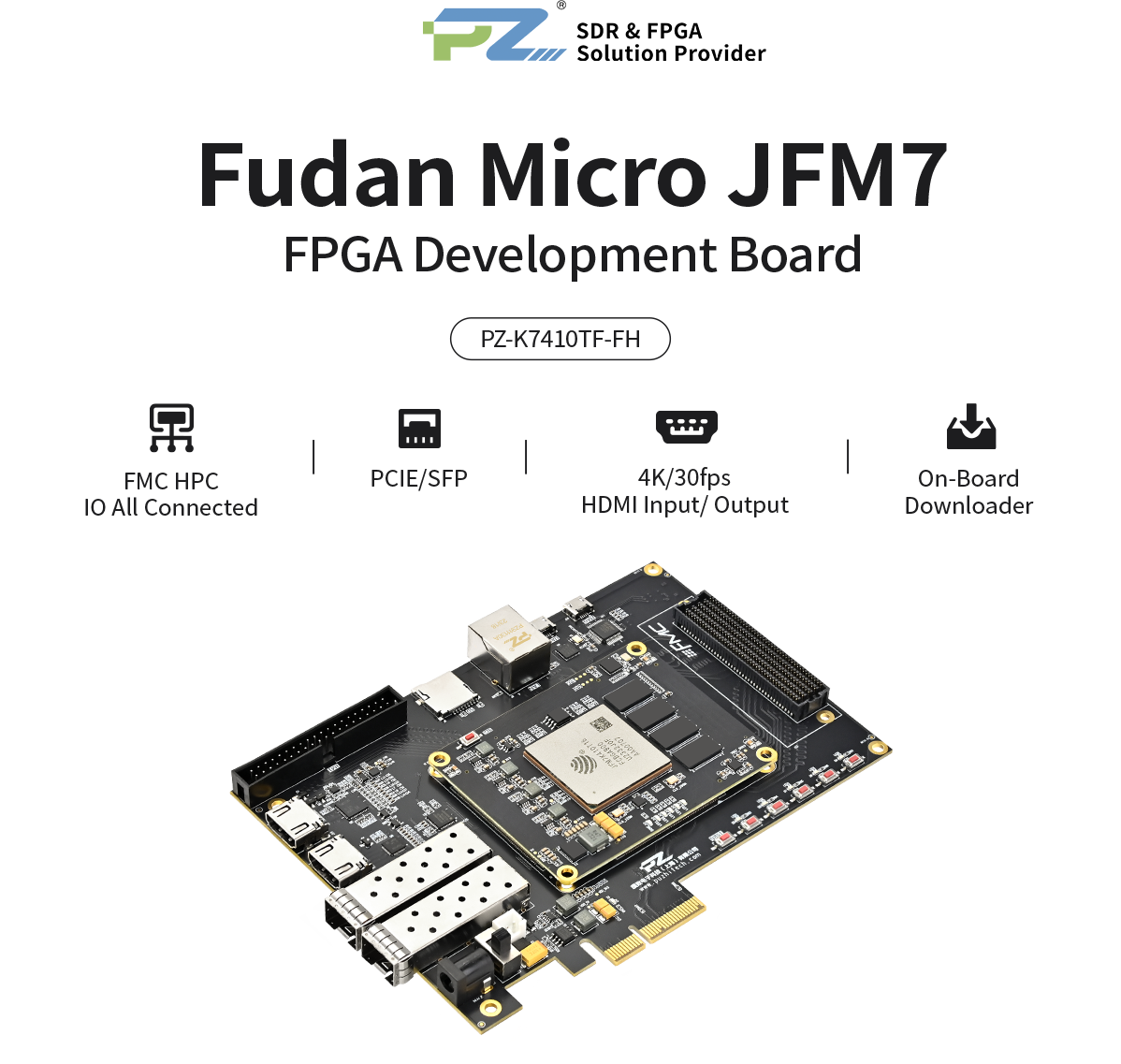

Puzhi FPGA Fudan Micro JFM7 K7410TF-FH Development Board
- Fudan micro development board / logical unit 406k / Slices 63550
- 2GB DDR3，256Mb QSPIFLASH，Power supply/current 12V/3A
- Core board 120P connector connection，size 83.8*64.8mm
- Reserved ports Gigabit Ethernet、FMC、HDMI、PCIE、SFP，etc
- Provide perfect hardware reference & software rich routines，help product development

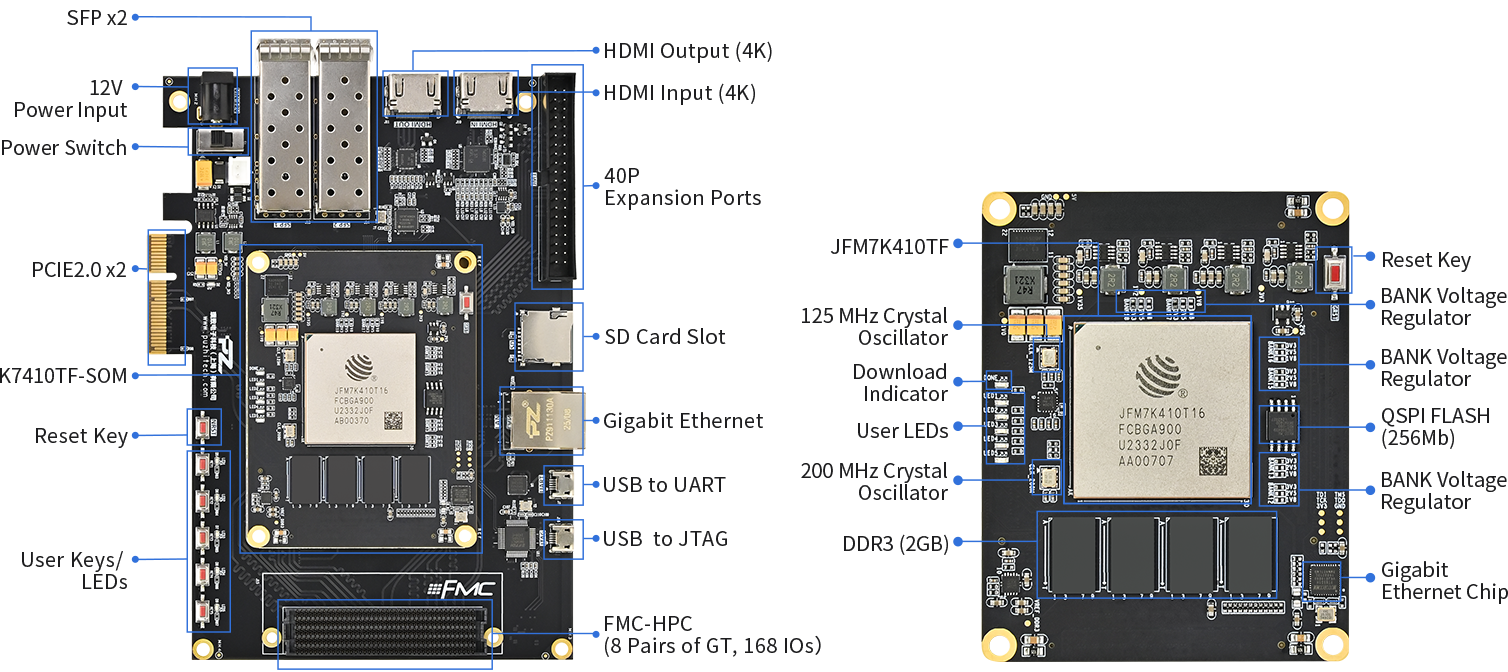

Interface Function Display
Product Parameters
Core Board Main Parameters
FPGA Dev. Board | PZ-K7410TF-FH-KFB |
FPGA Chip | JFM7K410T |
Speed Grade | 2 |
Chip Level | Industrial Grade（-40°C~+85°C） |
Logic Cells | 406K |
Slices | 63550 |
Flip-Flops | 508400 |
DSP Slices | 1540 |
TOTAL BLOCK RAM | 28620 |
DDR3 | 2GB/64bit Width |
QSPI FLASH | 256Mb, to Store Startup Files and User Files |
Start-up Mode | JTAG/QSPI, The Default Boot Mode is QSPI |
User LEDs | 5 |
Number of GTX | 16 Pais of TX/RX |
Number of IO | 288 Single-ended/ 144 Differential Pairs(1.8V/2.5V/3.3V adjustable, 3.3V default) |
Crystal Oscillator | 200MHz Differential Crystal for FPGA 125MHz Differential Crystal for the GT Transceiver Reference Clock |
Core Board Form Factors | 3.30 inch x 2.55 inch (83.8mm x 64.8mm) |
Interfaces and Function
JTAG Downloader | 1 |
UART | 1 |
SD Card Slot Interface | 1 |
Gigabit Ethernet | 1 |
HDMI | 1 Input, 1 Output |
LED, Key | 5 LEDs, 5Keys |
SFP Interface | 2 |
PICE2.0 | x2 |
FMC Interface | FMC HPC (8 Pairs of GT, 168 IOs) |
Voltage / Current | 12V/3A |
Board Form Factors | 6.50 inch x 4.25 inch (165mm x 108mm) |
Technology | Black Matte. Immersion Gold Process |
40Pin Expansion Port | 32 Single-ended/16 Differential Pairs Reserve one 40-pin 0.1 inch Expansion Port，to Connect Puzhi Modules (AD/DA, Camera, LCD) |

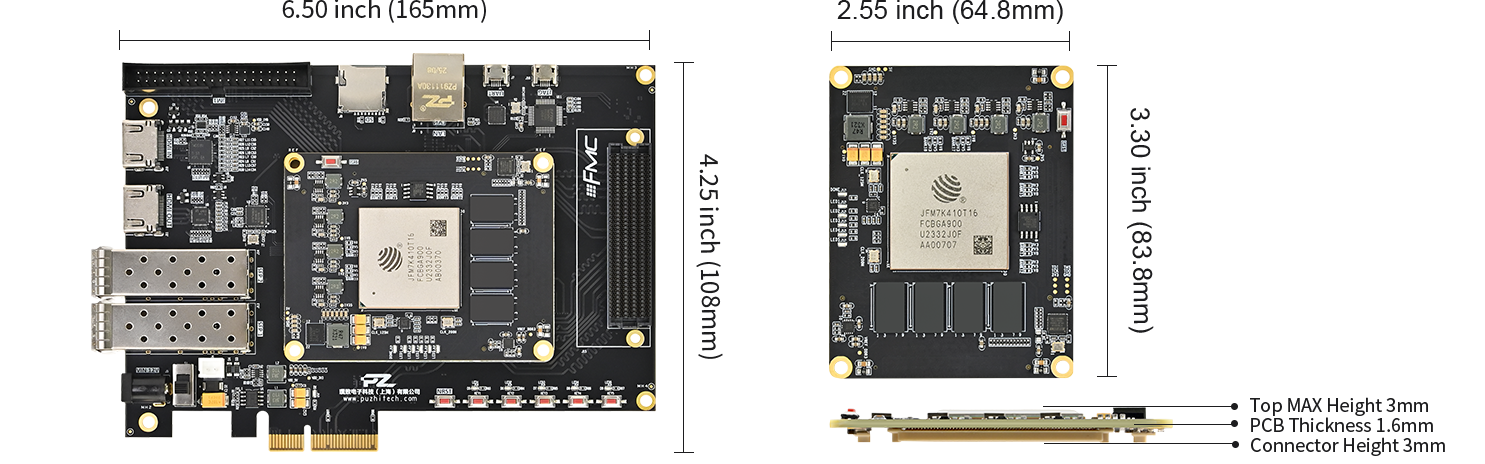

Product Dimensions
Product Packages

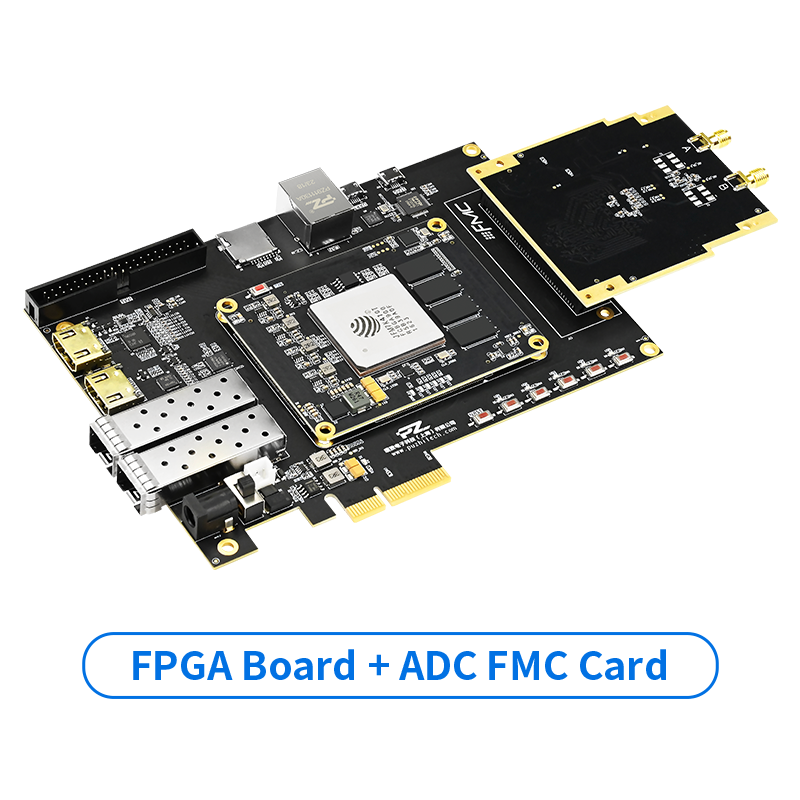

FMC Subcard Display

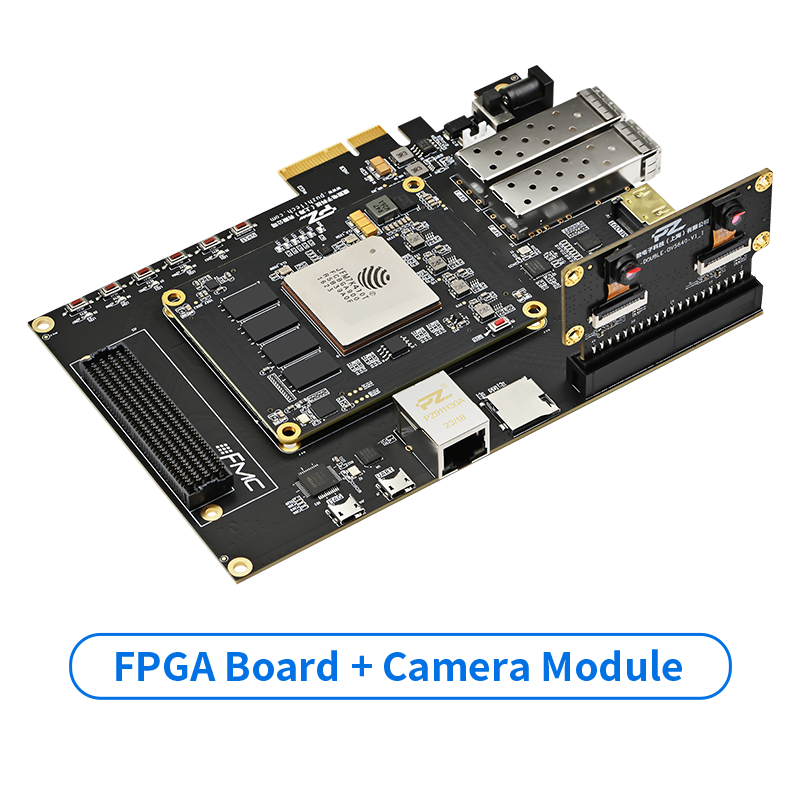

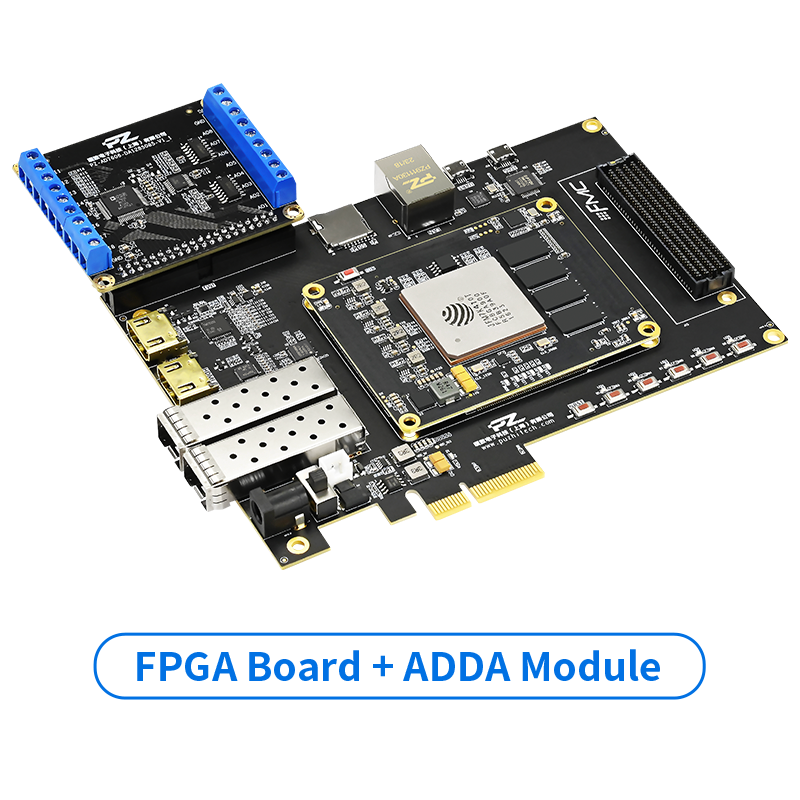

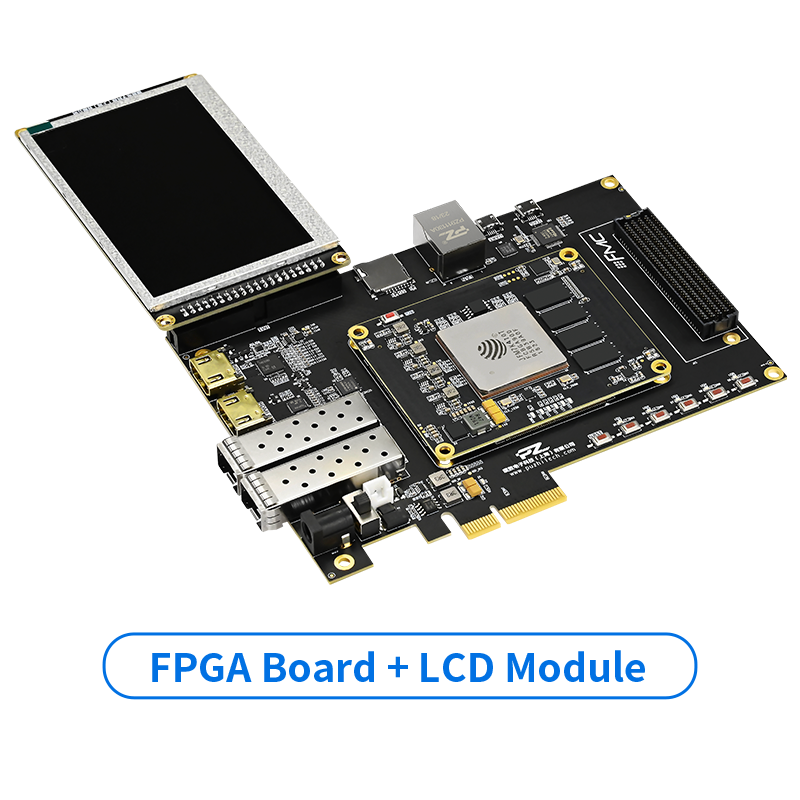

Other Subcard Display
Demos Come with the Board
Contact Customer Service after Purchase Files Saved in Google Drive/ Yandex/ Dropbox
Demos Constantly Being Updated... ...
- 1
FPGA Logic Demos
- 01.
LED Flashing
- 02.
LED PWM Control
- 03.
Key and key Elimination Jitter
- 04.
FPGA on-chip RAM Read and Write
- 05.
FPGA on-chip ROM Read and Write
- 06.
FPGA on-chip PLL Configuration
- 07.
FPGA on-chip FIFO Read and Write
- 08.
FPGA side DDR3 Control Read and Write
- 09.
I2C Read and Write E2PROM
- 10.
Uart Transceiver
- 11.
SD Card Read and Write
- 12.
AD-DA Conversion (200KSPS)
- 13.
LCD Color Bar Display
- 14.
LCD Output Image Display
- 15.
SD Card Reads BMP Picture LCD Display
- 16.
Gigabit UDP Based on RTL8211
- 17.
Binocular OV5640 Camera Demos
- 18.
SFP of IBERT for GTP Signal Eye Diagram Demos
- 19.
PCIE Speed Test
- 20.
Aurora Communication
- 21.
High Speed ADC-AD9643 Acquisition (250MSPS)
- 22.
UDP Transmission High Speed ADC Data Collection
- 23.
USB3.0 FIFO Transfer (will Update)
- 01.
- 2
Microblaze Parts
- 01.
Microblaze LED
- 02.
Microblaze Uart
- 03.
Microblaze GPIO Interrupt
- 04.
Microblaze Timer Interrupt
- 05.
Microblaze DMA LOOP
- 06.
Microblaze XADC
- 07.
Microblaze Lwip TCP loop
- 08.
HDMI (4K) Input/Output Loopback Demos
- 01.
- 3
FMC Topics(FMC daughter board is required)
- 01.
USB3.0 (PZ-FL3014)
- 02.
High Speed ADC (PZ-FL9643S)
- 03.
High Speed ADC/DAC (PZ-FL4322)
- 04.
Multi-Channel High-Speed ADC (PZ-FL9643D)
- 05.
Multi-Channel Domestic High-Speed ADC (PZ-FL2514D)
- 06.
Ultra High Speed ADC/DAC (PZ-FH8052)
- 07.
Medium-Speed ADC/DAC (PZ-FL3867)
- 08.
Multi-Channel Medium Speed DAC (PZ-FL9767D)
- 09.
Quad 100Gb Ethernet (PZ-FL8710F)
- 10.
Quad 1000Gb Ethernet (PZ-FL8211F)
- 11.
Software Defined Radio (PZ-FL9631/ PZ-FL9371/ FH9009/ FH9026 )
- 01.
- 4
PCIE Topics
- 01.
QT Environment Setup
- 02.
PCIE GPIO Control
- 03.
PCIE DDR Cache Interrupt
- 04.
PCIE HDMI Output Experiment
- 05.
PCIE Monocular OV5640 Image Experiment
- 06.
PCIE High-speed ADC Acquisition Experiment
- 01.

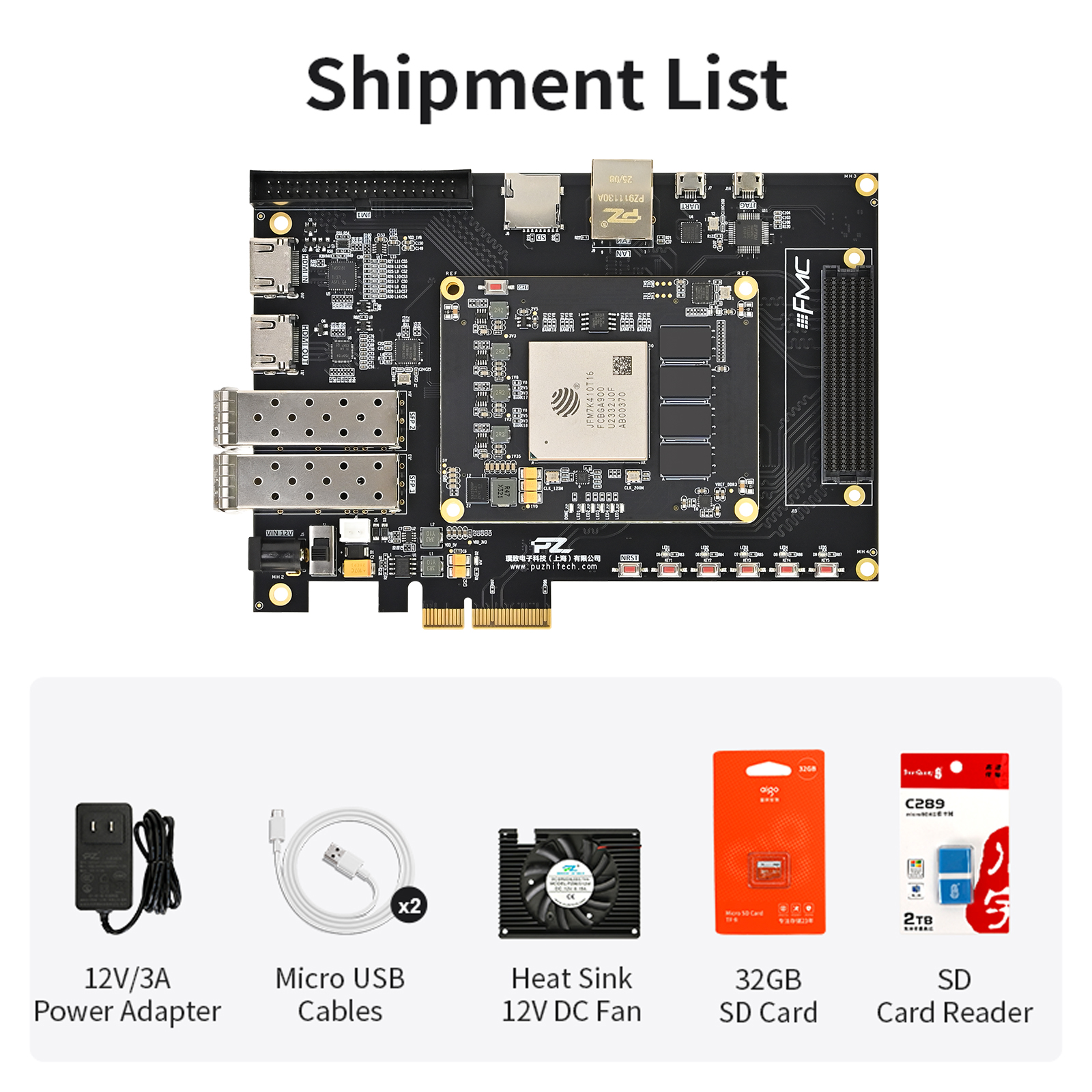

Standard Delivery List
Commerical Invoice
1.
Commercial Invoice Can be Provided for Customs Clearance and Company Financial Reimbursement.
2.
Please Contact with Customer Service and leave your Company Name, Address and Tax Code.
After-sale Service
1.
The Guarantee Period Amounts to one (1)Year after Delivery ofthe Products
2.
Be careful not to Connect the Wrong Power Supply, Pay Attention to Anti-static.
3.
Company Sourcing with Discount, Send Email for Quotation and Lead Time. Technical Email: support@puzhitech.com
4.
The Documents come with this products, saved in the Google Drive/Yandex/Dropbox Contact with Customer Service to Get it after Purchased.
Shipment
1.
DHL Shipment, it will take 3 to 5 Working Days on the Way DPEX/EMS/e-EMS/ Fedex lE/ Fedex IP/ SF Express/ UPS are Available
2.
Working Time: Monday to Friday, 9am to 6pm CsT.
Solution Display
